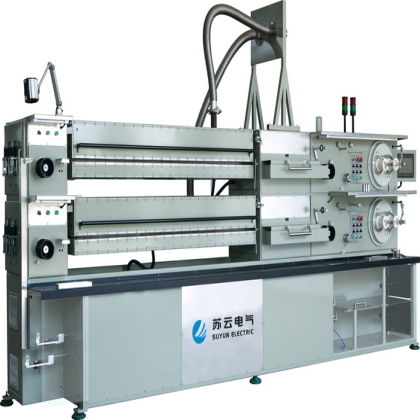

ZQS2000-2型智能型高速微细线漆包机

型号 Type

ZQD 2000-1

ZQD2000-1N

ZQS2000-2

生产头数Head

1

1

2

烘箱个数

Coating oven number

1

1

2

涂漆道数

Total number of passes

20

22

22

最大速度Max speed

1000m/min

1200 m/min

1200 m/min

生产范围Wire range

Ф0.015-0.040mm

Ф0.025-Ф0.060mm

Ф0.025-Ф0.060mm

换盘方式Spool exchange type

吸枪绕线

Suction gun threading

全自动换盘Automatic switching

全自动换盘Automatic switching

烘箱长度Coating oven length

2000mm

上漆方式Applicator system

毛毡Felt

烘箱类型Coating oven type

推拉式Push-pull oven

收线张力调节范围

Wire tension control of taking up

摆杆控制恒张力Dancer controls constant tension:5-40g

排线速度Traversing speed

3.5 - 10mm /s

退火管温控范围Annealing tube temperature control

360-650℃

漆缸温控范围Applicator bath temperature control

25-50℃



烘箱温控范围Coating oven temperature control



蒸发区Evaporation zone:: 220~320℃

烘培区Bake zone: 250~380℃

固化区Curing zone: 220~320℃

催化燃烧温控范围Catalytic combustion temperature

300~400℃

穿线方式Threading method

吸风枪穿线Suction gun threading

供漆方式Varnish supply

专用计量泵供漆

Dedicated dosing pumps for varnish

收线盘规格Take-up spool size

KK63、K80 、PL-1、PL-2等各种平盘以及双锥盘

KK63、K80and PL-1 PL-2

冷却系统Cooling system

强制风冷 Forced air-cooled

工作电源Power supply

50HZ, AC380 PE+N

退火管防氧化保护Annealing tube anti-oxidation protection

氮气保护型Nitrogen protective

烘炉温控

Coating oven temperature control

炉温采用8个区段控制

Temperature control with 8 sections
