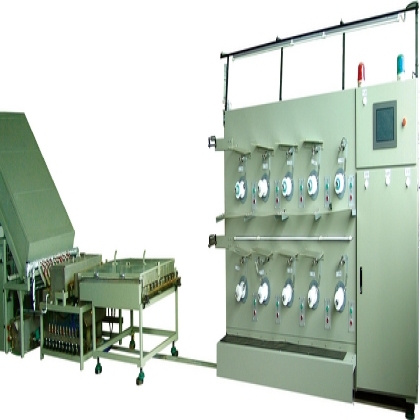

连续退火镀锡机:10头、20头

连续退火镀锡机(多种型号):10头、20

产品型号 Machine type

THD2500-10

THD3200-10

THD3200-20

适用线径Wire range

Ф0.025-Ф0.05mm

Ф0.04-Ф0.07mm

Ф0.04-Ф0.07mm

退火管长度Annealing tube length

2500mm

3200mm

3200mm

线速范围Wire speed

Max500m/min

Max500m/min

Max500m/min

收线头数Number of lines

10

10

20

线盘规格Take-up bobbin size

MaxФ185mm

MaxФ185mm

MaxФ185mm

收线重量Take-up weight

Max4.0kg

Max6.0kg

Max6.0kg

最大功率Maximum power

12.5kW

32.8kW

38.9kW

防氧化保护方式

Anti-oxidation protection

氮气保护或水蒸气 Nitrogen or steam protection

工作电源Power supply

3P+N+PE 380V AC/50HZ

退火管:用特殊的独立加热方式以保障各个部分温度的均衡、稳定性

Annealing tube:It uses an independent heating method in order to protect the balance and stability of temperature of every parts

锡锅温度控制:专业浇铸的合金材料锡锅,锡锅的加热采用特殊的加热方式以保障各个部分温度的均衡、稳定性。

The tin alloy pot casted professionally uses a special heating method to protect the balance and stability of every parts.

收线方式: 收线每个单元都采用独立速度控制恒定张力收线且不需要定速轮.

Take-up mode :

Constant tension of taking up controlled by dancer

independently are used in every taking up unit.Tension precision can reach:0.1g

排线方式: 盘动式

Traversing unit:Spool moving type

节能性能:高效的变频电机和变频器控制、单元软化加热管独立的温度控制可以实现降低40%以上的能耗。

Energy Performance:It is controlled by efficient frequency motor and inverter. The independent temperature control of soften heating tube can realize more than 40% energy saving.
