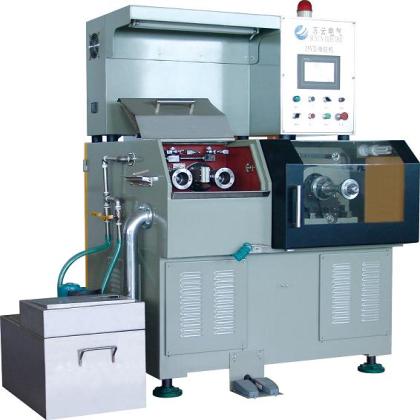

产品型号 Machine Type | LW85-15D |
成品线径 Finished wire dia | Ф0.018mm-Ф0.060mm |
入线线径 Inlet wire dia | Ф0.030mm-Ф0.10mm |
最大线速 Max. wire speed | 1200m/min |
最多眼模数 Drawing dies No./Max | 15 |
拉丝主电机 Main motor | 2.2kW |
收线动力 Take-up motor | 1.5kW |
最大载铜量 Max.copper loading capacity | 6.0 kg |
中间延伸率 Wire elongation | 6.0% |
出口延伸率 Wire elongation (Last one) | 4.7% |
定速轮直径 Dia.of Capstan Pulley | Ф85mm |
收线轴尺寸Spool size max | Ф130mm |
外形尺寸 Dimension(L×W×H) | 1120×990×1670(mm) |
控制方式 Control mode | 双变频控制 Dual inverters control |
操作方式 Operate mode | PLC+MMI |
收线方式 Take-up type | 双变频恒张力收线 Dual inverters control constant wire tension of take-up |
排线方式 Traversing type | 盘动式Spool moving type |
传动方式 Transmission type | 平皮带 By flat belts |
收线控制 Take-up control | 同步控制 Synchronous control |
张力调整 Tension control | 滑差 Slip |
润滑方式 Lubricant type | 喷酒式 Spray type |
使用电压 Power supply | 380V 50Hz |
