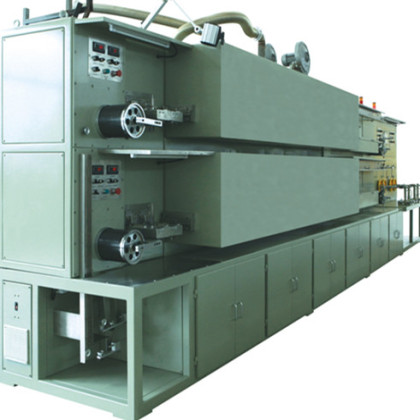

3000型智能型高速细线漆包机

型号Type

ZQD3000-1

ZQD3000-2

生产头数Head

1

2

生产范围Wire range

Ф0.045mm- Ф0.120mm

最大线速度Max speed

1500m/min

总道次Total number of passes

30(15+15)

烘箱特性 Coating oven features

热交换烘线炉  Hot air recycling type of oven

陶瓷催化剂 Ceramic catalyst

二次催化燃烧系统 II catalytic burning system

双交换系统 Dual exchange system

涂漆系统  Enamel system

毛毡   Felt

自动供给及补充涂料 Automatic varnish feeding system

涂料精过滤  Varnish filter

涂漆量变频调控 Varnish quantity controlled by inverter

排线速度Traversing speed

3.5 - 10mm /s

收线张力调节范围Wire tension control of taking up

5-40g

退火管温控范围

Annealing tube temperature control

360-650℃

漆缸温控范围

Applicator bath temperature control

25-50℃



烘箱温控范围

Coating oven temperature control



蒸发区Evaporation zone:220~320℃

烘培区Bake zone: 250~380℃

固化区Curing zone: 220~320℃

催化燃烧温控范围

Catalytic combustion temperature

300~400℃

烘箱长度Coating oven length

3000mm

收线方式Take up mode

全自动换盘:Automatic switching

收线盘规格Take-up spool size

K80 、PL-1、PL-2、PT-3等各种平盘以及双锥盘

K80、PL-1、PL-2、PT-3

冷却系统Cooling system

强制风冷 Forced air-cooled

工作电源Power supply

50HZ, AC380 PE+N

退火管防氧化保护

Annealing tube anti-oxidation protection

氮气保护型 Nitrogen protective

烘炉温控Coating oven temperature control

炉温采用8个区段控制

Temperature control with 8 zones
