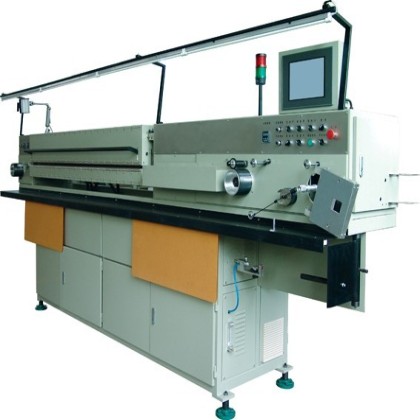

型号：Type | ZQD 1400-1 | ZQS1400-1 | ZQD1400-2 |
生产头数Line | 1 | 1 | 2 |
烘箱个数Coating oven number | 1 | 2 | 2 |
烘箱类型Coating oven type | 推拉式 Push-pull oven |
生产范围Wire range | Ф0.012(mm)-Ф0.030(mm) |
最大线速度Max speed | 1000m/min |
总道次Total number of passes | 20（10+10） |
上漆方式Applicator system | 毛毡 Felt |
排线速度Traversing speed | 3.5 - 10mm /s |
收线张力调节范围 Wire tension control of taking up | 5-40g |
退火管温控范围 Annealing tube temperature control | 360-650℃ |
漆缸温控范围 Applicator bath temperature control | 自动控温 25-50℃ Automatic temperature control :25-50℃ |
烘箱温控范围 Coating oven temperature control | 蒸发区Evaporation zone: 220～320℃ |
烘培区Bake zone: 250～380℃ |
固化区Curing zone: 220～320℃ |
催化燃烧温控范围 Catalytic combustion temperature | 300～400℃ |
烘箱长度Coating oven length | 1400mm |
穿线方式Threading method | 吸风枪穿线Suction gun threading |
供漆方式Varnish supply | 专用计量泵供漆Dedicated dosing pumps for varnish |
收线盘规格Take-up spool size | KK63、K80、PL-1、PL-2等各种平盘以及双锥盘 KK63、K80、PL-1、PL-2 and other PL-type or tapered spools |
冷却系统Cooling system | 强制风冷 Forced air-cooled |
工作电源 Power supply | 50HZ, AC380 PE+N |
退火管防氧化保护 Annealing tube oxidation protection | 氮气保护型 Nitrogen protective |
烘炉温控Coating oven temperature control | 炉温采用8个区段控制 Temperature control with 8 sections |
涂层精度Film precision | 可以达到Film control precision can be achieved: ±0.001mm |
